1. Overview: YK3164RC face recognition and temperature measurement integrated machine is based on face recognition algorithm and infrared thermal imaging temperature measurement algorithm AI access control terminal, with binocular live anti-counterfeit function, temperature display function, high temperature alarm function, mask detection, form the product shape of "face comparison + body temperature detection" to meet different application scenarios. Cloud cartoon helps all walks of life to quickly realize the face recognition temperature function, a total of difficult times, to fight the epidemic refueling! Product introduction and application: YK3164RC face recognition and temperature measuring machine adopts the international advanced neural network Algorithm (CNN) , which is formed after tens of millions of times of Algorithm training, set Image acquisition, face detection, face tracking and face comparison functions, not only high recognition rate and recognition speed. The off-line dynamic face recognition machine can recognize pedestrians in motion without the direct recognition of pedestrians'special cooperation and computer control, which greatly improves the usability of face recognition. Products can be used in the general market for any access control and advertising doors, can be directly output switch signal and Wigan Signal; Can Be widely used in their own doors, residential access control, school entrances and exits, access gates, office buildings, subway, airports, high-speed rail and other scenes. At present, most of the entrances and exits of residential areas and factories are verified by swiping cards, and the problem of no card is often encountered. Face recognition technology is applied to the entrance and exit gate system, which is a more secure authentication method, our face recognition camera can be used in access control system, with high recognition rate, recognition speed, can adapt to high and low temperature harsh environment and so on. After the face comparison is successful, the camera can directly output the switch signal to the gate, the gate, the advertisement gate and other equipment to complete the opening action. CAMERA PARAMETERS: L Mask detection L abnormal temperature voice alarm; l with 5 inches liquid crystal display; l temperature detection error: 0.2 °C indoor l temperature detection distance: 0.3-0.5 meters; L Working Environment temperature: 30 °C ~ + 80 °C l with 6 mm high-pass Light Lens and smart fill light; l plastic material, operating system embedded Linux system l front-end capture, comparison, identification, output open-gate signal, no need to configure the server; L Low illumination CMOS, 0.01 lux@f1.2, AGC ON; L Recognition Distance: 0.5-3 m; recognition speed ≤250 ms, recognition rate ≥97% ; l support panorama, local close-up image output (successful, unsuccessful, failed, composite image) ; L SUPPORT TEMPORARY LIST CONTROL: set a face validity period, can be accurate to the time point, beyond the time point automatically expired; l face directly on camera, without a face collector, can also use mobile phone photos or inch photos; All faces are uploaded in bulk; l supports 20,000 images; recognition type: 1: N; Supports Video Overlay; supports Wigan Protocol; supports black and white lists and alarm output; L has electronic shutter function: no person needs to stand, pause, or wait, no need to cooperate with the recognition, even if the trot can be recognized, truly achieve dynamic recognition function; l can be used offline and online, a computer can be connected to 16 face cameras, but also more than one computer can be used online, the software includes people to add, modify, delete, query, attendance, visitors and other functions; l 2 Megapixel, using embedded system, the HEISS industrial grade chip, sony 1 / 2.8"wide dynamic low illumination sensor, image Resolution 1920 h * 1080 V, frame rate up to 25 frames; l high performance embedded processor, set image acquisition, face detection, face tracking, face contrast, live judgment in one, whether indoor and outdoor, day and night, cloudy day, rainy day, dusk, direct sunlight and no light environment can also recognize; 4, technical parameters basic parameters processor Heshi 3516 DV3008 GBFLASH4 GB sensor two Sony 1 / 2.8"line-by-line scan CMOS, minimum Illumination of imported infrared thermal image module 0.01 lux@f1.2, AGC ON shutter 1 / 100s to 1 / 100s, 00 second lens dual Sony 6mm HD Lens display screen size 5 inch hd screen resolution 800 * 1280 wide dynamic adaptive digital noise reduction automatic temperature monitoring module, temperature measurement method infrared thermal image working wavelength 6-14um temperature public resolution 0.02 °C temperature range 20-45 °C sensor voltage 0.3 v power supply error 0.2 °C voice broadcast support temperature abnormal alarm detection range 0.3 m x 0.5 m video standard H. 264 / MJPEG rate 1024Kbps video coding standard H. 264 video size 1920 h * 1080 v & amp 1280 H * 720 v Frame rate 25 FPS video set exposure (shutter) , gain, contrast, saturation, brightness adjustable video stack time, point name backlight compensation support capture function picture format using Jpeg Code capture result Panorama, local close-up (match successful, no match, match failed, composite picture) picture size 1920 * 1080(Panorama) ; Local close-up images based on the actual screen-to-screen ratio intelligent function recognition mode offline dynamic portrait recognition, sentence is too long, please supply a shorter sentence, tCPIP, HTTP, DNS, NTP, FTP, serial protocol, Wigan, private protocol storage support TF card 64G off-network local storage and off-network transmission universal function heartbeat, password protection, NTP, time-to-school connection, 1 RJ4510M / 100M adaptive Ethernet Port 1 RS-485, 1 Wigan trigger input 1 external trigger input trigger output 2 switch output 1 audio output working environment power supply DC 12V 2A power consumption ≤8W operating temperature-30 °C ~ + 70 °C operating humidity 20%-90% size (mm) width 134mm, height 180mm, thickness 22mm 5, host display 1, packing list

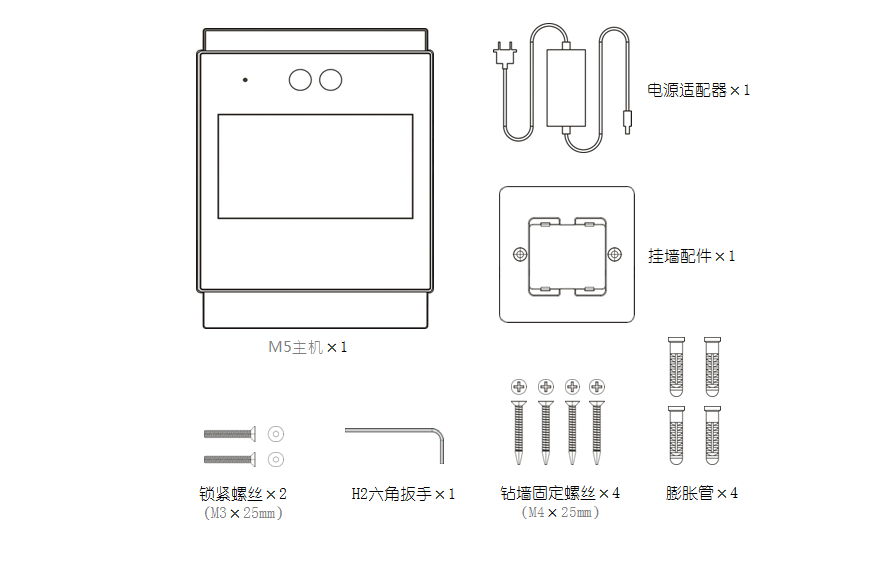

盒 装 产 品 除YK3164RC 主 机 一 台 之 外，还 附 带 电 源 适 配 器 及 安 装 用 挂 墙 配 件 、 六 角 扳 手 、 膨 胀 管 、 螺 丝 若 干 。

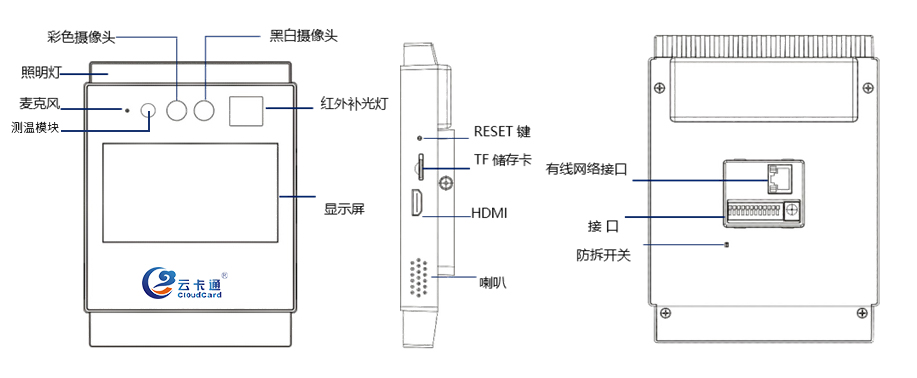

2、主机结构
3、端口接线方式
请 参 考 此 图 表 进 行 线 路 接 驳

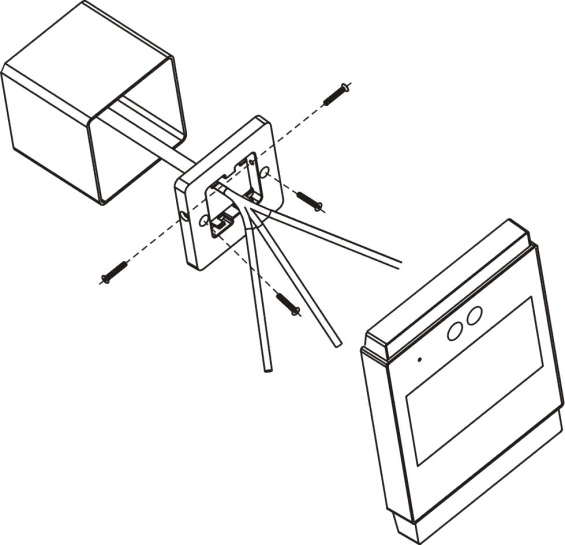

4、安装方法一：挂盒
第一步：用两颗M4x25mm钻墙固定螺钉把挂墙配件固定在86暗盒上第二步：接好线后，将主机扣在挂墙配件上第三布：用H2六角螺丝刀将两颗M3x25mm锁紧螺丝分别在两侧锁紧主机

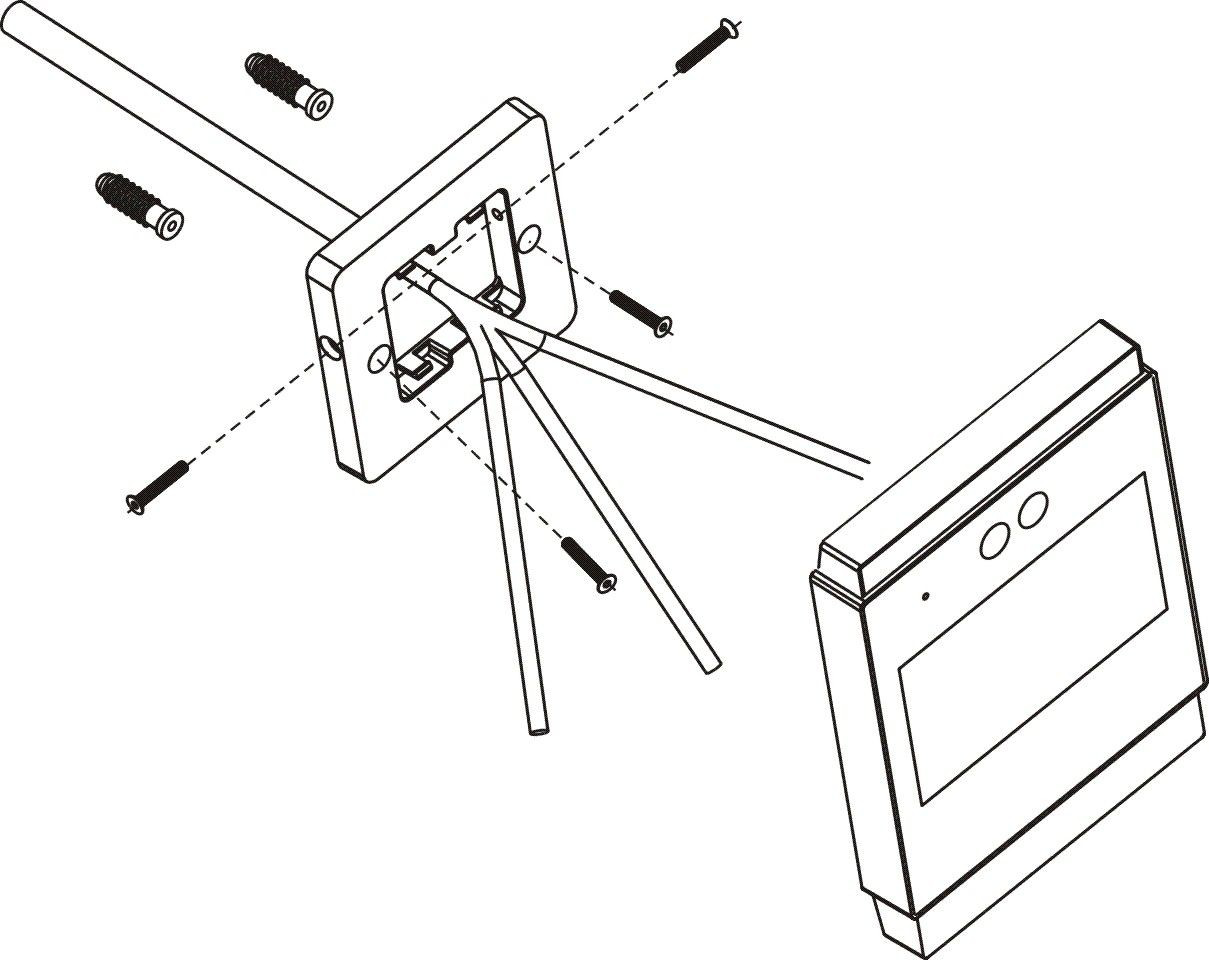

安装方式二：挂墙
第一步：用两颗M4x25mm钻墙固定螺钉把挂墙配件固定在两个已埋入墙内的膨胀管内。第二步：接好线后，将主机扣在挂墙配件上第三布：用H2六角螺丝刀将两颗M3x25mm锁紧螺丝分别在两侧锁紧主机
